Ultimate GX460 Lift Kit: Elka 2.5 Suspension Guide

The Elka 2.5 Reservoir suspension kit is a premier gx460 lift kit offering a 2- to 3-inch ride height increase. It features 56mm anodized aluminum bodies and remote reservoirs for superior heat dissipation. When paired with Dobinsons rear springs, it provides a balanced setup for the J150 platform, improving ground clearance and wheel travel while maintaining trail compliance. This setup is particularly effective for owners who want to eliminate the factory floaty feel without sacrificing the refined luxury of the Lexus brand.

Engineering the J150: The Elka 2.5 Advantage

When we look at the engineering required to support an adventurous overlanding build, the materials matter just as much as the valving. The Lexus GX460 is a heavy vehicle, often pushing close to its Gross Vehicle Weight Rating (GVWR) once you add sliders, skids, and a roof rack. The Elka 2.5 series suspension for the Lexus GX460 features a 56mm hard-anodized aluminum body for improved heat dissipation and a heavy-duty 19mm induction-hardened shock shaft. Aluminum is a superior choice over steel for shock bodies because it sheds heat faster, which prevents the oil from foaming during high-speed washboard sections or long technical descents.

The internal hydraulic valving of the Elka 2.5 is designed to provide better lateral stability. On a stock J150 platform, the suspension often feels disconnected. We found that the Elka system, specifically when utilizing a 700 lb/in front spring rate, supports the heavy front end of the GX460 during hard braking and cornering. This helps maintain tire contact with the ground, ensuring that your traction control and ABS systems can work as intended rather than fighting for grip.

One of the major lexus gx460 remote reservoir shock benefits is the increased oil capacity. By moving the reservoir outside the main shock body, Elka allows for more suspension travel within the same footprint. This extra volume means the shock stays cooler for longer periods. If you are planning a trip through the Mojave or long stretches of the Mojave Road, this prevents shock fade, a common issue where the suspension becomes "mushy" after an hour of high-frequency vibration.

Technical Snapshot: Elka 2.5 Specifications

Solving the KDSS Mystery: Geometry & Alignment

One of the most frequent questions we get from the community is about the gx460 lift kit kdss relationship. The Kinetic Dynamic Suspension System (KDSS) is a marvel of engineering that uses hydraulic cylinders to disconnect the sway bars off-road, but it can be a headache when you start increasing ride height. When you install a gx460 lift kit, you are altering the angle of the track bar and the sway bar links. If you go above 2 inches without the right hardware, the KDSS system can bind or develop a "lean" where the driver's side sits lower than the passenger side.

To build an ultimate GX460, you must consider geography and geometry together. Any lift above 1.5 inches should ideally include aftermarket Upper Control Arms. The factory arms do not have enough built-in caster to allow for a proper alignment once the vehicle is gx460 lifted. Without new arms, your Lexus will wander on the highway, making long road trips exhausting.

Furthermore, we highly recommend the gx460 lift kit with kdss guide for hardware additions. To achieve maximum articulation, you need to extend the travel of the KDSS pistons. Utilizing a spacer kit for the front and rear KDSS mounts, often referred to as a B.O.T.C.K. (Bolt-On Technology Correction Kit), helps level the vehicle and restore the original sway bar geometry.

Prerequisites Checklist for a Complete Build

• Upper Control Arms (UCAs): Essential for caster correction and clearing larger tires.
• KDSS Spacers/Links: Prevents binding and corrects the common KDSS lean.
• Rear Coil Springs: Dobinsons or similar brands to match your constant cargo weight.
• Extended Brake Lines: Recommended if you are pushing for 3 inches of wheel travel.
• Bump Stop Extensions: Protects your expensive Elka investment from bottoming out.

Performance Review: Tarmac vs. Trail

On-Road: Tarmac Performance

On the street, the gx460 suspension upgrade on-road comfort is immediately apparent. The factory suspension is often described as "boat-like," with significant nose-dive during stops and body roll in the corners. The Elka 2.5 uses what we call single-motion damping. When you hit a pothole or a highway expansion joint, the shock compresses and rebounds once, then settles. There is no lingering oscillation or "float."

For those running Load Range E tires, which have stiffer sidewalls, the Elka shocks do a fantastic job of soaking up the harshness that those tires usually transmit into the cabin. It transforms the GX from a soft luxury SUV into a planted, confident tourer that actually feels smaller than it is because of the improved lateral stability.

Off-Road: Trail Performance

In our elka 2.5 suspension lexus gx460 review, the off-road section is where this kit truly shines. On technical trails, the articulation provided by the 2.5-inch lift allows the J150 platform to keep its tires on the ground longer. Traction is the name of the game in rock crawling, and the Elka shocks provide incredible trail compliance.

If you opt for the Dual Compression adjusters, you can tune the shocks based on your load for the weekend. Going light for a quick day trip? Soften the compression. Loading up for a week-long overlanding build? Click the adjusters up to maintain control over the extra weight. This versatility makes it the best gx460 lift kit for those who use their vehicle as both a daily driver and an adventure rig.

Installation & Maintenance: Keeping the Performance

It is important to understand that these are high-performance components. Professional installation for a gx460 lift kit is recommended, as it involves compressing heavy-duty springs and dealing with the hydraulic pressure of the KDSS system. Most owners should expect a 6-to-8-week lead time, as these kits are often built-to-order to match your specific vehicle weights.

Unlike cheap "set and forget" lift kits, high-end shocks require upkeep. Elka recommends a service and rebuild interval of 50,000 to 60,000 miles for these shocks, though this interval may decrease to 30,000 miles for vehicles used frequently in heavy off-road conditions. Because they use a fully rebuildable internal valving design and high-quality seals, you are essentially buying a "forever" shock. You don't replace them; you simply service them.

Ownership Cost & Maintenance Table

Maintenance is a small price to pay for the level of performance offered. Regularly cleaning the 19mm shafts of road salt and mud will extend the life of the seals significantly. When it eventually comes time for the lexus gx460 suspension lift rebuild interval, the shocks can be shipped back to an authorized center and returned to "like-new" specs for a fraction of the cost of a new kit.

FAQ

What is the recommended lift height for a GX460?

For most users, a lift height of 2 to 2.5 inches is the "sweet spot." This height provides a significant increase in ground clearance for trails while keeping the center of gravity low enough for safe highway driving. Going above 3 inches requires much more expensive modifications and can negatively impact the J150 platform's stability.

Can you lift a GX460 with KDSS?

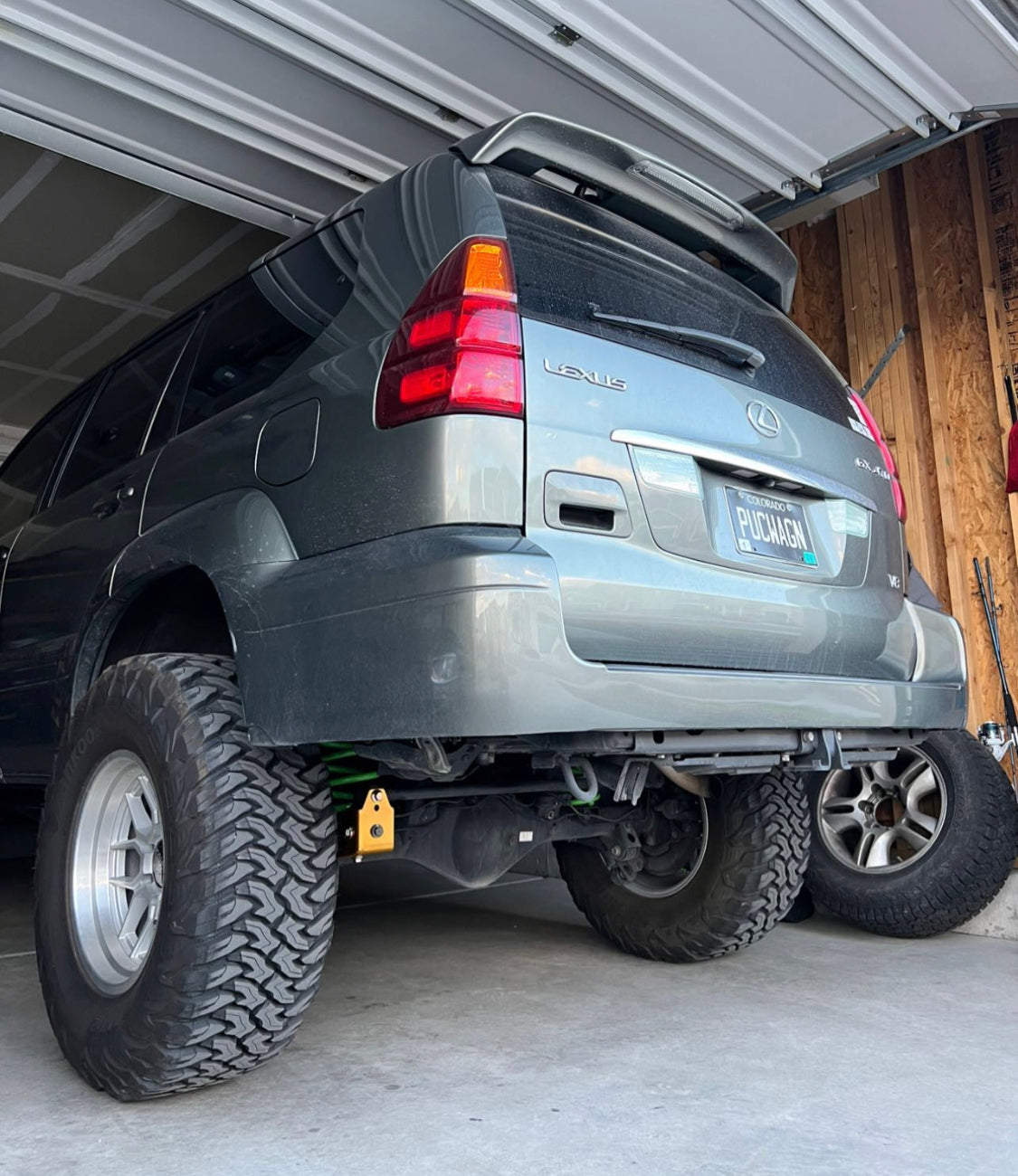

Yes, you can absolutely lift a GX460 with KDSS. However, it requires specific considerations like using the right spacers and ensuring the hydraulic lines have enough slack. The Elka 2.5 is fully compatible, but we recommend adding a track bar correction kit to keep the rear axle centered and avoid the dreaded KDSS lean.

Do you need an alignment after lifting a GX460?

Yes, an alignment is mandatory after installing any gx460 lift kit. Lifting the vehicle changes the toe, camber, and caster. Without an alignment, you will experience rapid tire wear and poor handling. If you lift more than 2 inches, you will likely need aftermarket upper control arms to achieve the proper caster settings.

What tire size fits a GX460 with a 2-inch lift?

With a 2-inch lift, the most popular tire size is 275/70R17 or 265/70R17. If you are willing to do some minor trimming of the plastic inner fender liners and potentially a "body mount chop," you can fit 285/70R17 (roughly 33-inch) tires, which drastically improve off-road performance.

How does lifting a GX460 affect its off-road performance?

Lifting a GX460 significantly improves its approach, departure, and break-over angles. It allows for larger tires, which provides more ground clearance under the diffs. By using a high-performance kit like the Elka 2.5, you also gain better wheel travel and articulation, helping you maintain traction on uneven terrain that would leave a stock GX460 spinning its wheels.

Investing in the Elka 2.5 setup is the ultimate way to unlock the potential of the Lexus J150. It bridges the gap between a luxury commuter and a world-class overlanding machine, proving that you don't have to choose between comfort and capability. If you are looking for the best gx460 lift kit on the market today, this suspension system should be at the very top of your list.
