This 80 Series Land Cruiser sets the gold standard for mechanical honesty in a world of complex electronics. By combining the legendary reliability of a 12-valve Cummins with 1-ton axles and 42-inch tires, it bridges the gap between a hardcore rock crawler and a long-range overland rig. If you want a vehicle that can survive the end of the world while delivering 20 mpg, this specific drivetrain and suspension configuration is the blueprint to follow.

This extreme land cruiser build centers on a cummins swapped land cruiser platform, delivering 700 lb-ft of torque and 1-ton durability for technical rock crawling. By merging Toyota’s iconic chassis with a heavy-duty American diesel powertrain, it achieves a level of performance that modern off-roaders rarely touch.

There is something inherently satisfying about a project that prioritizes "over-engineering" over "over-complicating." When we look at a high-end land cruiser build, we usually see expensive roof racks and shiny accessories. But true extreme toyota land cruiser off-road build enthusiasts know that the soul of a rig is its drivetrain. This build isn't just a weekend warrior; it’s a masterclass in how to swap a Cummins into an 80 Series chassis to create a machine capable of tackling the Rubicon Trail on Saturday and driving across the continent on Monday.

The Heart: Cummins 6BT Swap and Torque Management

The decision to move away from the original 1FZ-FE or 1HD-T engines wasn't made lightly. However, when your goal is 700 lb-ft of torque, the 5.9L 12-valve Cummins 6BT is the undisputed king. This engine is famous in the diesel world for its simplicity—it only requires one wire to run—and its massive potential for power. To reach that 700 lb-ft mark, this cummins swapped land cruiser utilizes a Holset HX35 turbocharger and custom fuel plate tuning, providing a flat torque curve that is essential for technical rock crawling.

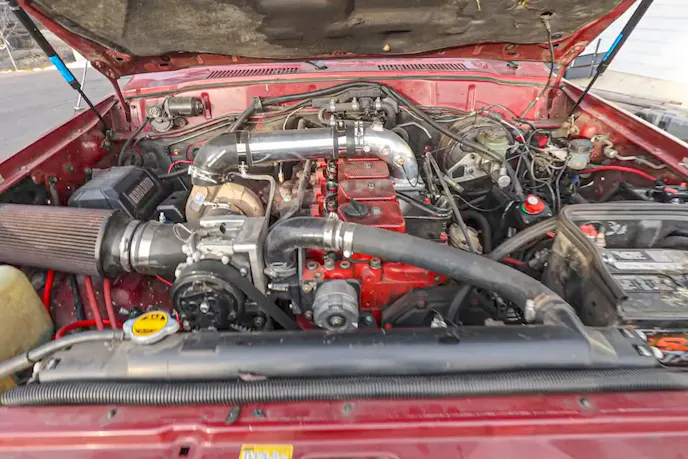

Integrating this massive engine into the Toyota engine bay required a specialized 80 series land cruiser cummins swap kit to ensure proper clearance for the radiator and the custom intercooler. Because the Cummins is significantly heavier than the factory Toyota straight-six, the front end had to be reinforced. The beauty of this diesel conversion is its efficiency; despite the massive 42-inch tires, the owner reports roughly 20 mpg, a figure unheard of in most gas-powered 80 Series rigs.

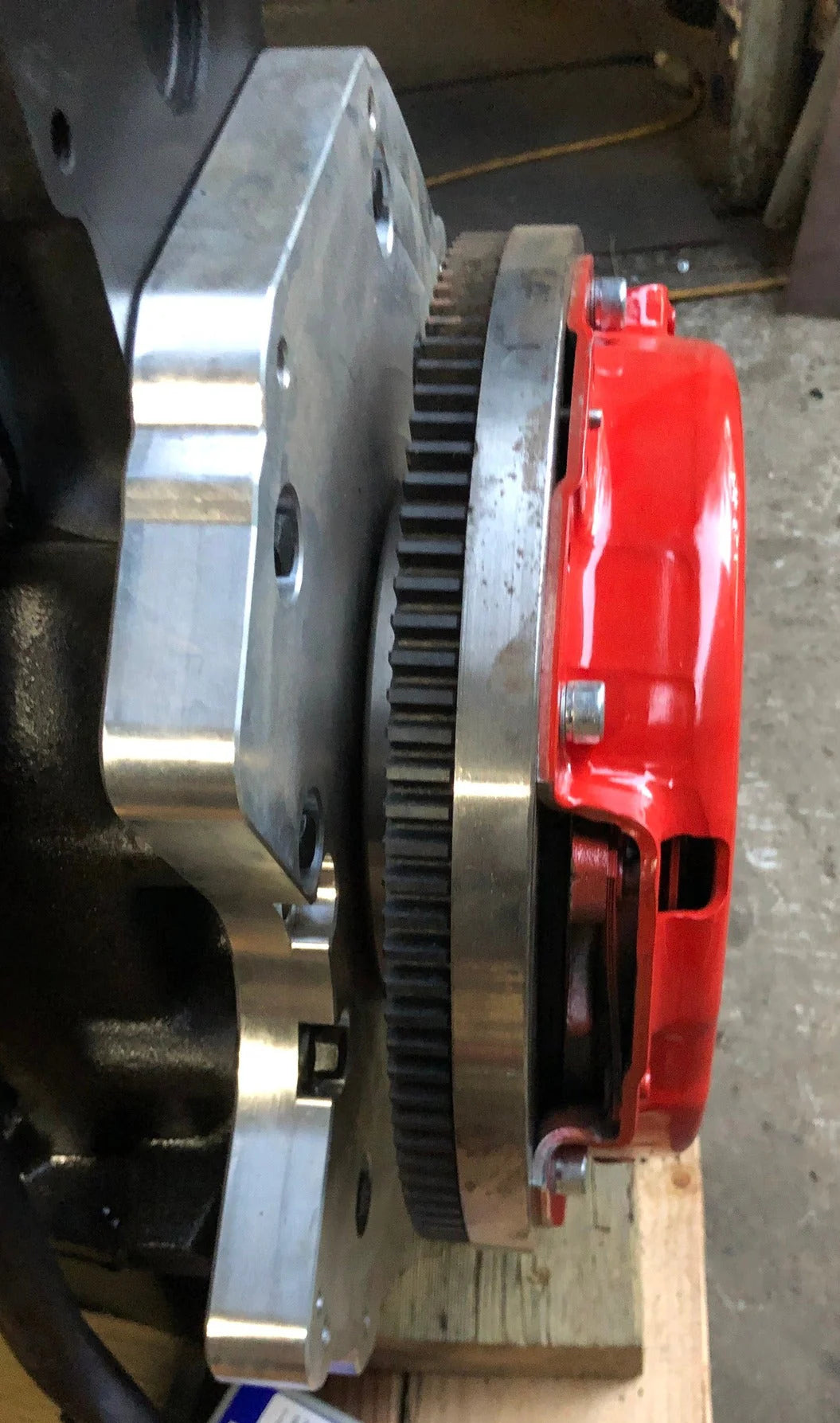

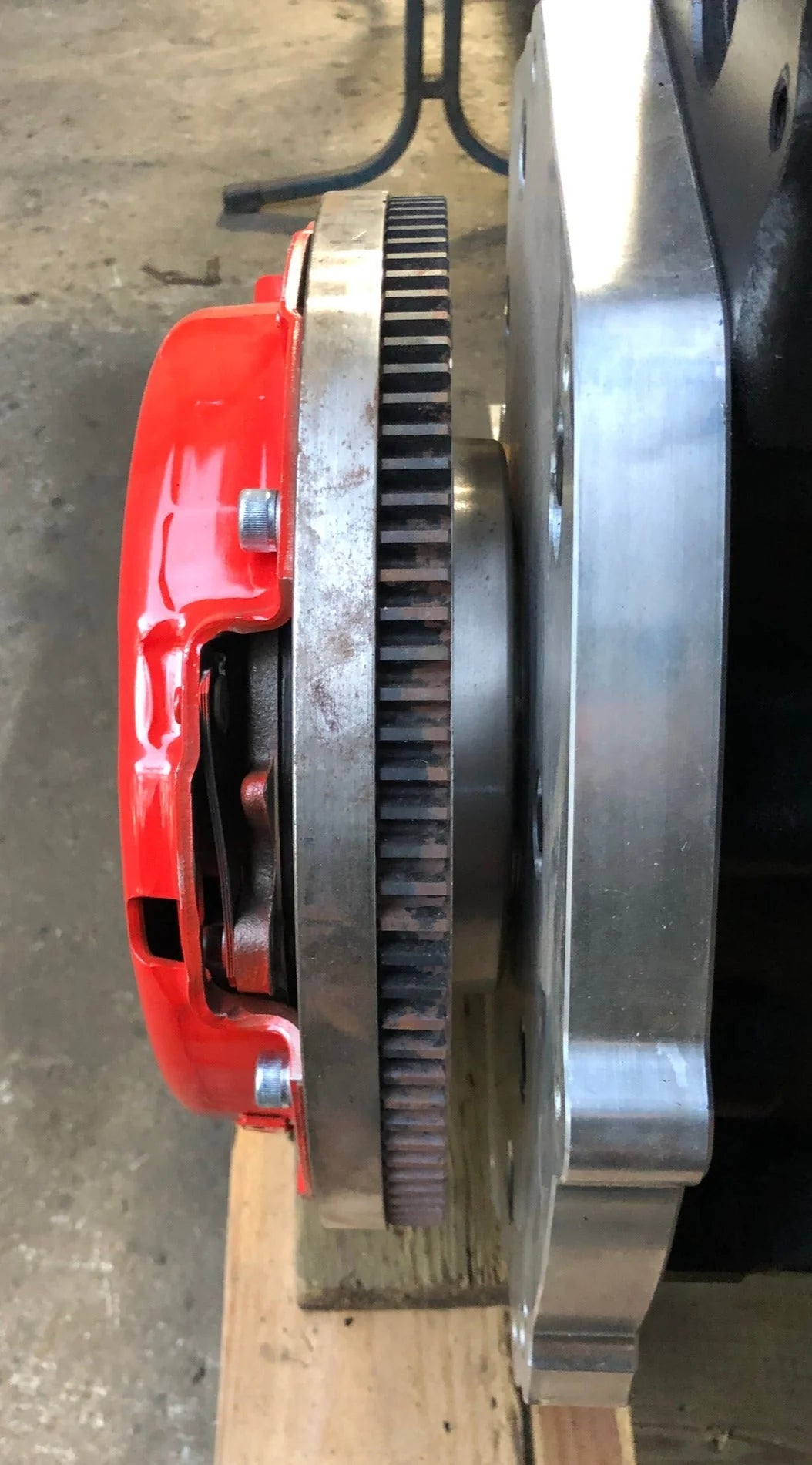

Managing all that grunt is an NV4500 manual transmission. This gearbox is a favorite in the high torque land cruiser drivetrain upgrades community because of its massive cast-iron case and deep 5.61:1 first gear. To mate this to the original Toyota transfer case, the builders used precision CNC-machined adapters, allowing the rig to maintain its full-time 4WD capabilities when needed while offering the brute strength of an American heavy-duty manual.

"There is no substitute for mechanical simplicity. In an era where hybrid systems manage your traction, the 6BT Cummins offers a direct, analog connection to the trail that you can feel through the steering wheel and the throttle pedal."

The Foundation: 1-Ton Axle Swap and Drivetrain

If you try to put 700 lb-ft of torque through stock Toyota axles, you are going to have a very short day on the trail. This land cruiser build addresses that weakness by following a comprehensive land cruiser 1-ton axle swap guide. The front end features a Chevy kingpin Dana 60, widely regarded as one of the strongest steering axles ever produced. It utilizes a solid axle swap philosophy that provides superior articulation compared to modern independent front suspension (IFS) setups.

In the rear, a 14-bolt axle provides the ultimate peace of mind. Both axles are geared to handle the massive 42-inch Goodyear Wrangler MT/R tires, ensuring the engine stays in its optimal RPM range during highway cruising. While some Hodson Motors builds utilize a 6L80 six-speed automatic transmission to manage high torque, the NV4500 in this rig offers a more traditional, tactile experience for the driver.

The drivetrain is further protected by custom rock sliders and heavy-duty skid plates. Even with the added weight of the Cummins, the use of CNC 6061 aluminum for various adapters and brackets helps keep the unsprung weight manageable. This rig doesn't just look tough; every component was chosen for its ability to withstand the extreme stresses of low-range, high-torque maneuvering.

Suspension Geometry and 42-Inch Tire Fitment

Fitting 42-inch tires on an 80 Series is no small feat. It requires more than just a simple lift kit; it requires a complete rethink of the 80 series land cruiser suspension geometry guide. The front of this rig uses a custom three-link setup, while the rear features a four-link geometry that allows for maximum flex while keeping the axles centered during high-speed desert runs.

To control the heavy diesel engine and the massive unsprung weight of the 1-ton axles, the build relies on King 2.5 coilovers. These are fully adjustable, allowing the owner to fine-tune the damping for either technical rock crawling or high-speed overland travel. While many off-roaders might opt for a four-inch Old Man Emu suspension lift for 35-inch tires, a rig of this scale requires custom fabrication.

The bodywork had to be modified extensively to accommodate the 42s. The fenders were radiused and the wheel wells were tubbed to ensure zero rubbing at full compression. This level of body modification is what separates a standard land cruiser build from an expedition-ready monster. Combined with beadlock wheels, the tires can be aired down to single-digit pressures, providing a massive contact patch for climbing steep granite faces.

Modern Contrast: 2026 Land Cruiser 1958 vs. The Extreme Build

As we look toward the future, the contrast between this custom diesel beast and the upcoming Toyota offerings is stark. The toyota land cruiser 2026 price is expected to reflect its high-tech hybrid powertrain and luxurious interior. While the new i-Force Max hybrid produces a respectable 465 lb-ft of torque, it pales in comparison to the raw, mechanical 700 lb-ft generated by the 6BT Cummins.

For those considering the 2026 land cruiser 1958, there is a clear trade-off. The new model offers modern safety, fuel efficiency, and a factory warranty. However, the modding potential for 2026 land cruiser 1958 off-road mods will likely be limited by the complex electronic architecture. You won't be swapping 1-ton axles or 42-inch tires onto a 2026 hybrid without significant headaches.

Ultimately, this land cruiser build represents the pinnacle of "built, not bought." While the 2026 models will be fantastic daily drivers, they cannot match the self-sustained, expedition-ready nature of a diesel-swapped 80 Series. With its 300 Ah lithium battery system and dual-zone fridge, this extreme rig is designed to stay off the grid long after a modern hybrid would be looking for a specialized technician.

FAQ

What are the best Land Cruiser models for an off-road build?

The 80 Series (1990-1997) is widely considered the best platform due to its solid front and rear axles, robust frame, and spacious interior. It strikes the perfect balance between comfort and ruggedness. The 100 Series is also excellent for overlanding due to its powerful V8, though the independent front suspension makes it slightly less capable for hardcore rock crawling compared to the 80.

What are the most essential modifications for a Land Cruiser?

After ensuring the mechanical maintenance is up to date, the most essential mods include high-quality all-terrain or mud-terrain tires, a suspension lift to improve clearance, and rock sliders to protect the body. For those heading into remote areas, a reliable 12V fridge and a dual-battery system are the next logical steps for a self-sustained land cruiser build.

Which suspension system is best for a Land Cruiser?

The choice depends on your intended use. For general overlanding and comfort, Old Man Emu or Ironman 4x4 offer great bolt-on kits. For more extreme terrain or heavy builds involving diesel swaps, a custom-tuned coilover system like King or Fox 2.5s is necessary to handle the weight and provide the required articulation.

What are the common challenges when building a Land Cruiser?

Rust is the primary enemy of the Land Cruiser chassis, particularly in the rear wheel wells and frame rails. When performing engine swaps like a Cummins diesel conversion, the main challenges involve packaging the larger engine, cooling it effectively, and ensuring the drivetrain can handle the massive increase in torque without snapping axles or stripping gears.

Can a built Land Cruiser still be used as a daily driver?

Yes, but with caveats. A land cruiser build on 35-inch tires with a well-tuned suspension can be surprisingly comfortable. However, once you move to 40-inch+ tires and 1-ton axles, the road manners become more truck-like. The Cummins swap actually improves daily drivability for many by providing better fuel economy and much more passing power than the original gas engine.
