Quick Facts: 'Skaði' the Volvo C304 6x6
- Vehicle Platform: 1975 Volvo C304 (TGB 13) 6x6 ex-military personnel carrier.
- Engine Swap: Mercedes-Benz OM605 2.5L 20-valve turbo-diesel (Replaced the original Volvo B30 petrol engine).
- Drivetrain: ZF 5-speed manual transmission, Volvo FD51 transfer case, and portal axles with vacuum-locked differentials.
- Dimensions: 1.9m wide, 2.55m high (Allows for access to narrow tracks where larger trucks like Unimogs fail).
- Tires/Suspension: 37-inch Maxxis Trepador tires on widened steel rims; Dobinsons 3-way adjustable shock absorbers.
- Electrical System: 400Ah Lithium battery bank (2x 200Ah) with 500W of flexible solar panels.
- Living Amenities: Electric BunduTop pop-top roof, Dometic fridge, induction cooktop, and Womo water filtration system.
There is a specific kind of mechanical music that only a 6x6 can play. It’s a rhythmic, low-frequency hum of six tires biting into the gravel, overlaid with the distinct whistle of a turbo spooling up as you climb an Icelandic F-road. For most, the dream of the ultimate overlander starts with a modern pickup and a catalog of bolt-on parts. But for those who truly understand the limitations of the trail, the journey leads somewhere far more specialized.
Meet 'Skaði.' Named after the Norse goddess of winter and mountains, this 1975 Volvo C304 6x6 is more than just a vintage military truck; it is a masterclass in purposeful engineering. Built to solve the "Goldilocks" problem of overlanding—finding a vehicle large enough for a family to live in but small enough to navigate the tight, technical tracks of Europe and Australia—this Volvo has been stripped to its bones and rebuilt as a survival machine.
Why the Volvo C304? (The Size Advantage)
When planning a full-time overland vehicle for a family, the first instinct is often to go big. Many builders gravitate toward the Mercedes Unimog or a MAN truck. While those platforms offer cavernous living spaces, they come with a significant handicap: sheer bulk. A standard Unimog is roughly 2.3 to 2.5 meters wide, which makes narrow forest tracks in the Alps or the tight switchbacks of the Australian Outback a nerve-wracking exercise in tree-scraping.
The Volvo C304 (the civilian designation for the TGB 13 military series) offers a different proposition. At just 1.9 meters wide, it shares the same footprint as a modern mid-size SUV but offers the internal volume of a small van. Its 2.55-meter height (before the pop-top) allows it to slip under low-hanging branches that would snag a larger expedition truck.
Builder Tip: The Vintage Advantage In many European countries, vehicles over 30 or 50 years old qualify for "Historical" status. This grants exemptions from modern emissions zones (LEZ), significantly reduces insurance costs, and often removes the need for annual road inspections. For a global overlander, the 1975 C304 is a legal "cheat code."
The Heart of the Beast: Mercedes OM605 Engine Swap
As legendary as the Volvo C304 is for its chassis, the original powertrain was its Achilles' heel. The 3.0-liter B30 petrol engine was designed for an era when fuel was cheap and military logistics handled the refills. In a modern overlanding context, the statistics were horrifying: the original engine consumed a staggering 29 liters of fuel per 100 kilometers (roughly 8 mpg). Worse still, it had a thirst for oil, requiring 3 liters for every 200 kilometers of driving.
To transform Skaði into a viable long-distance explorer, a transplant was mandatory. The engine of choice? The Mercedes-Benz OM605.
The OM605 is a 2.5-liter, 20-valve turbo-diesel known for its bulletproof reliability and its ability to produce massive torque with the right tuning. By swapping in the Mercedes mill and pairing it with a ZF 5-speed manual gearbox, the builders effectively tripled the vehicle’s usable power and torque. Perhaps more importantly, the fuel economy was halved, making remote stretches of the desert or the Arctic tundra far less stressful.
The Technical Handshake: Specs at a Glance
| Component | Original Spec (Volvo B30) | Upgraded Spec (Mercedes OM605) |
|---|---|---|
| Fuel Type | Petrol (Gasoline) | Turbo-Diesel |
| Consumption | 29L / 100km | ~14-16L / 100km |
| Transmission | 4-speed Manual | ZF 5-speed Manual |
| Transfer Case | Volvo FD51 | Volvo FD51 (Retained) |
| Torque Delivery | High-revving, low torque | Low-end grunt for technical climbs |

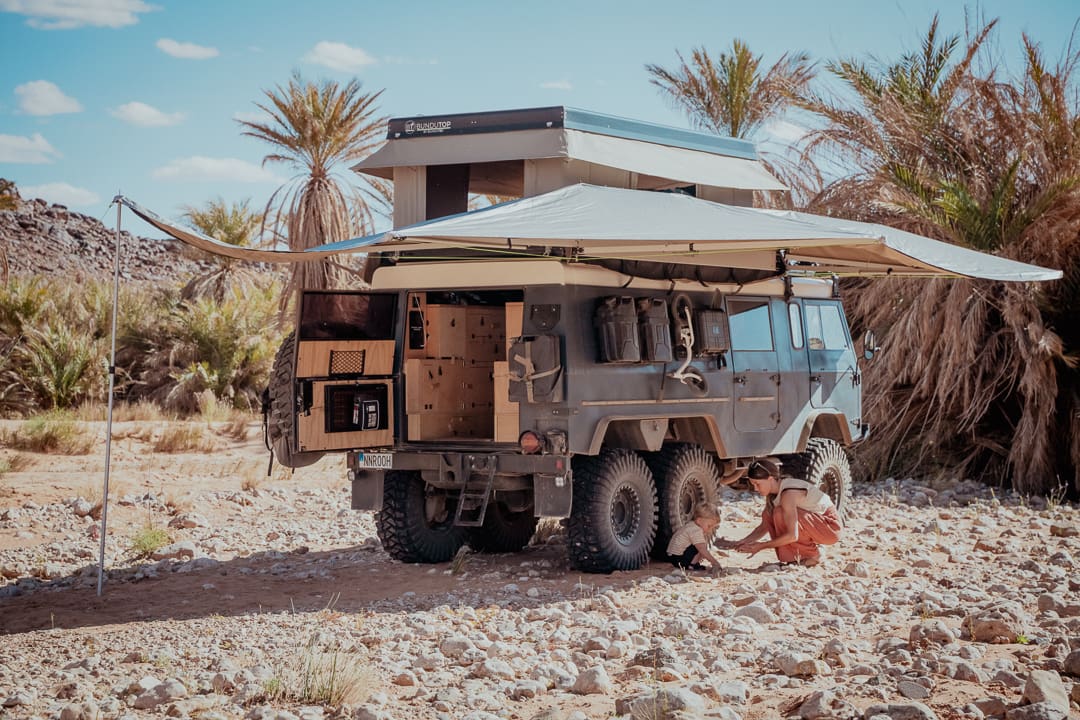

Off-Road Prowess: Portal Axles and 37-Inch Rubber
If the engine is the heart, the portal axles are the soul of the C304. Unlike standard axles where the axle tube connects to the center of the wheel, portal axles use drop-gears at the hubs. This raises the entire axle housing, providing massive ground clearance without needing a skyscraper-high suspension lift.
Skaði features triple vacuum-locked differentials—meaning the driver can lock all six wheels together with the flick of a switch. To complement this, the suspension was overhauled with Dobinsons 3-way adjustable shock absorbers. These allow the driver to tune the damping for heavy corrugated roads or high-speed bitumen transit.
The choice of tires was equally critical. The build sits on 37-inch Maxxis Trepador tires wrapped around custom-widened steel wheels. The Trepador’s aggressive directional tread pattern is designed for mud and rock, but more importantly, the increased diameter further improves the approach and departure angles, making this 6x6 nearly unstoppable in technical terrain.
Living Off-Grid: The Interior and Pop-Top Conversion

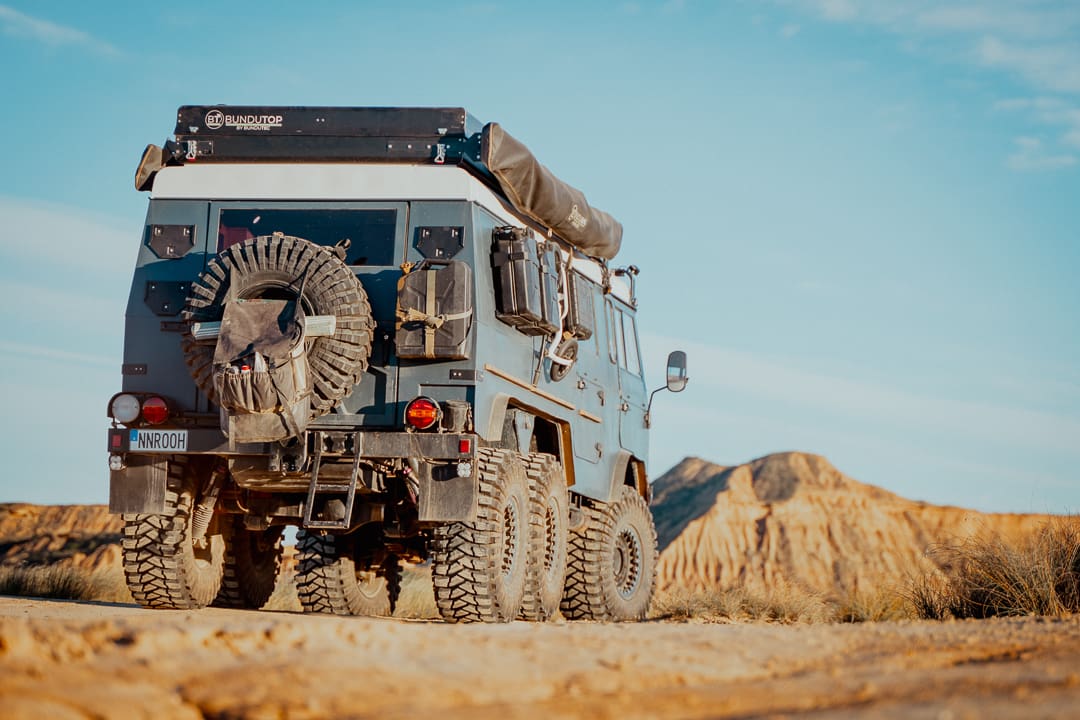

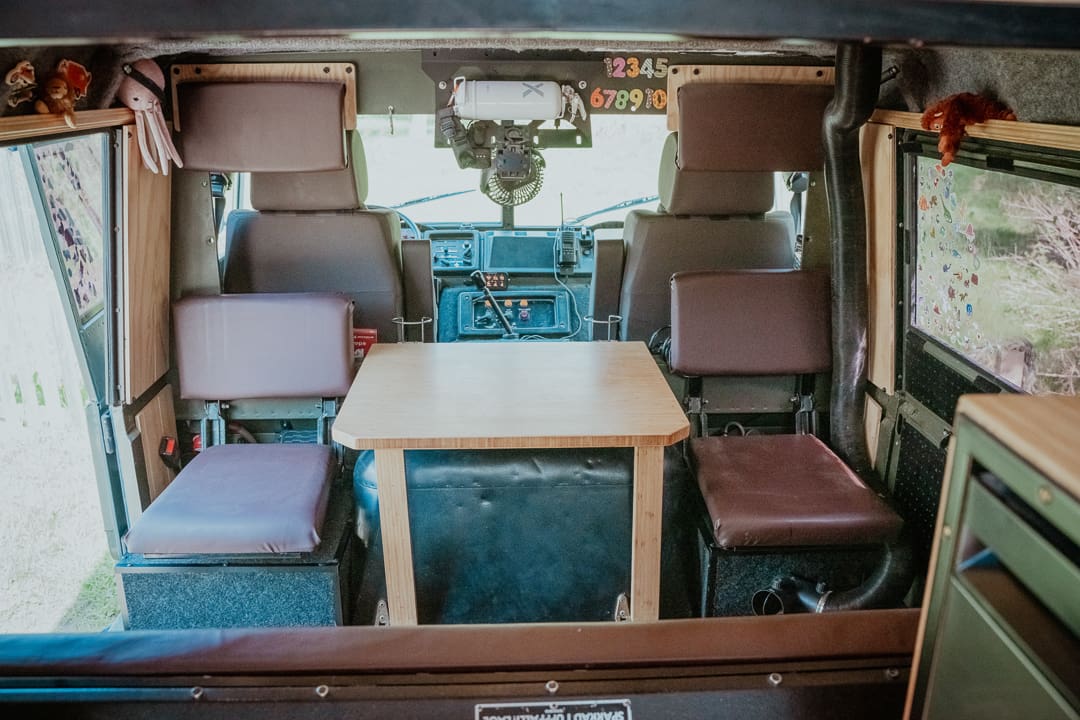

Turning a military troop carrier into a family home requires more than just a mattress and a stove. The primary challenge with the C304 is interior height. To solve this, the roof was cut to accommodate an electric BunduTop pop-top conversion. With the push of a button, the roof rises, providing full standing room and a comfortable double bed for the adults, while the main cabin remains dedicated to the living area and child’s bunk.
The interior build-out was focused on "modern minimalism." Because space is at a premium, every square inch serves a dual purpose.

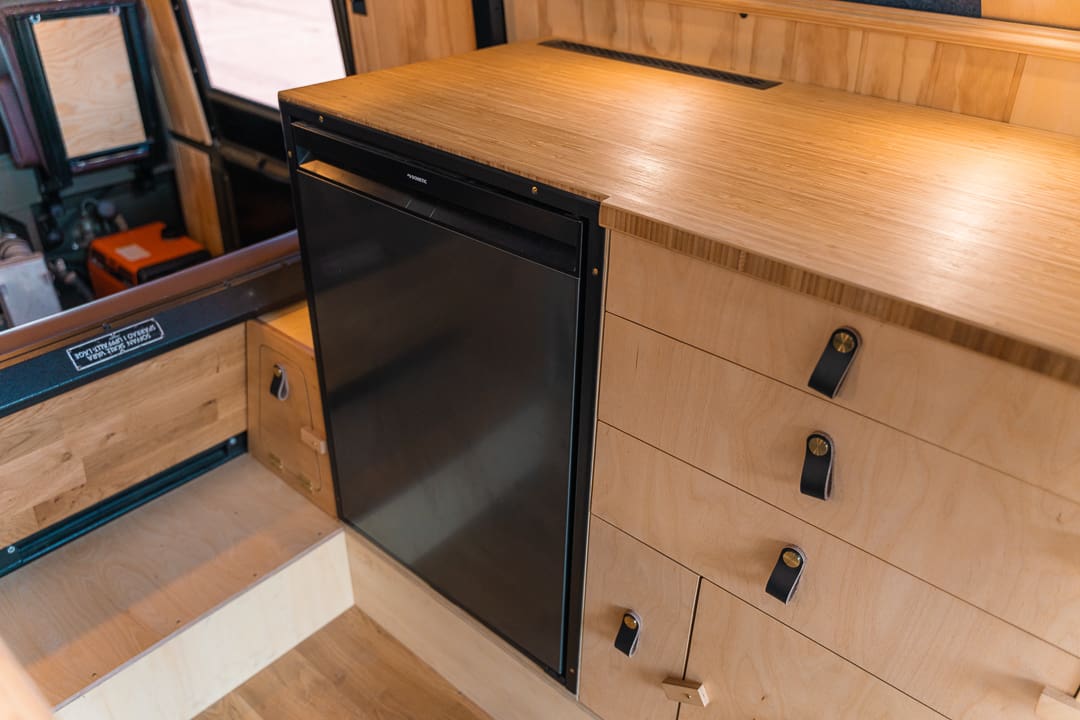

- The Kitchen: Features a deep sink with Womo water filtration, a Dometic fridge/freezer, and a portable induction cooktop to keep the cabin gas-free.
- Comfort: The entire cabin was stripped and lined with Dynamat sound deadening and closed-cell foam insulation. This is a crucial step; without it, a military Volvo is a "tin can" that amplifies road noise and loses heat instantly in cold climates.
The electrical backbone is what truly enables Skaði to live off the grid indefinitely. The system centers around a 400 amp-hour lithium battery bank (comprised of two 200Ah units). To keep the batteries topped up, 500 watts of flexible solar panels were mounted to the roof. This setup provides enough juice to run the fridge, lights, water pumps, and induction cooktop even during stationary periods in overcast conditions.
Real-World Testing: From Swedish Winter to Iceland’s F-Roads
A build of this magnitude isn't validated in a driveway; it’s validated in the mud. The project was an intense eight-month sprint, often conducted in the freezing Swedish winter. The goal was simple but daunting: a shakedown run through the highlands of Iceland.
In the Icelandic interior, the C304 finally found its element. Crossing glacial rivers that would have drowned a standard 4x4 was effortless thanks to the portal axles and the raised air intake of the OM605. The 6x6 configuration provided a level of stability on loose volcanic scree that 4x4s simply cannot match.
What the builders learned, however, was that a "perfect" vehicle is never truly finished. Even after thousands of kilometers, the process of fine-tuning the weight distribution and optimizing the storage remains ongoing. As any true builder will tell you, a turnkey vehicle bought from a showroom can get you to the campsite, but a vehicle you’ve bled over in a cold garage is the only thing that will get you to the ends of the Earth.
FAQ
Q: Is the Volvo C304 difficult to drive on the highway? A: With the original engine and tires, yes. However, the OM605 swap and the addition of modern sound deadening and 5-speed transmission make it much more manageable. It will comfortably cruise at 90-100 km/h, though it is still a large, mechanical beast that requires an attentive driver.
Q: How do you find parts for a 50-year-old Swedish military truck? A: Surprisingly, it's not as hard as you'd think. The Volvo C3-series has a dedicated global cult following. Many mechanical parts are shared with Volvo trucks of that era, and companies like Tatanka in Sweden specialize specifically in C303/304 parts.
Q: Why choose the 6x6 (C304) over the 4x4 (C303)? A: For overlanding, it comes down to payload. The C304 has a significantly higher Gross Vehicle Weight Rating (GVWR), allowing you to carry the batteries, water, and cabinetry required for full-time living without exceeding the vehicle's structural limits.
