Jeep Liberty Rock Crawler: $400 Junk to 40-Inch Tires

Reimagining the jeep liberty means looking past its soccer-mom reputation to find the hidden potential of a $400 donor car. While the jeep liberty 2012 marked the end of an era for the nameplate in the US, a dedicated 2005 jeep liberty off road build proves this platform can tackle the toughest trails with the right fabrication. By ditching the IFS for a solid axle swap and fitting 40 inch tires on jeep liberty, we transform junk into a rock-crawling beast capable of extreme rock crawling.

A jeep liberty can be transformed into a capable rock crawler by replacing the factory independent front suspension with a solid axle swap, such as a Dana 60. Builders often utilize a custom four-link suspension with adjustable air bags and 40-inch tires to maximize articulation and ground clearance for extreme terrain.

The $400 Foundation: Why the 2005 Jeep Liberty?

When we talk about a budget jeep liberty project car, we are usually looking at the first-generation KJ model. During its production run, this was a massive success for the brand, with frequently exceeding 150,000 annual sales making it one of the most common sights on American roads. However, time has not been kind to the resale value of these compact SUVs. Today, the estimated scrap value for a junked jeep liberty typically ranges between $315 and $405, making it the ultimate blank canvas for a builder with more talent than money.

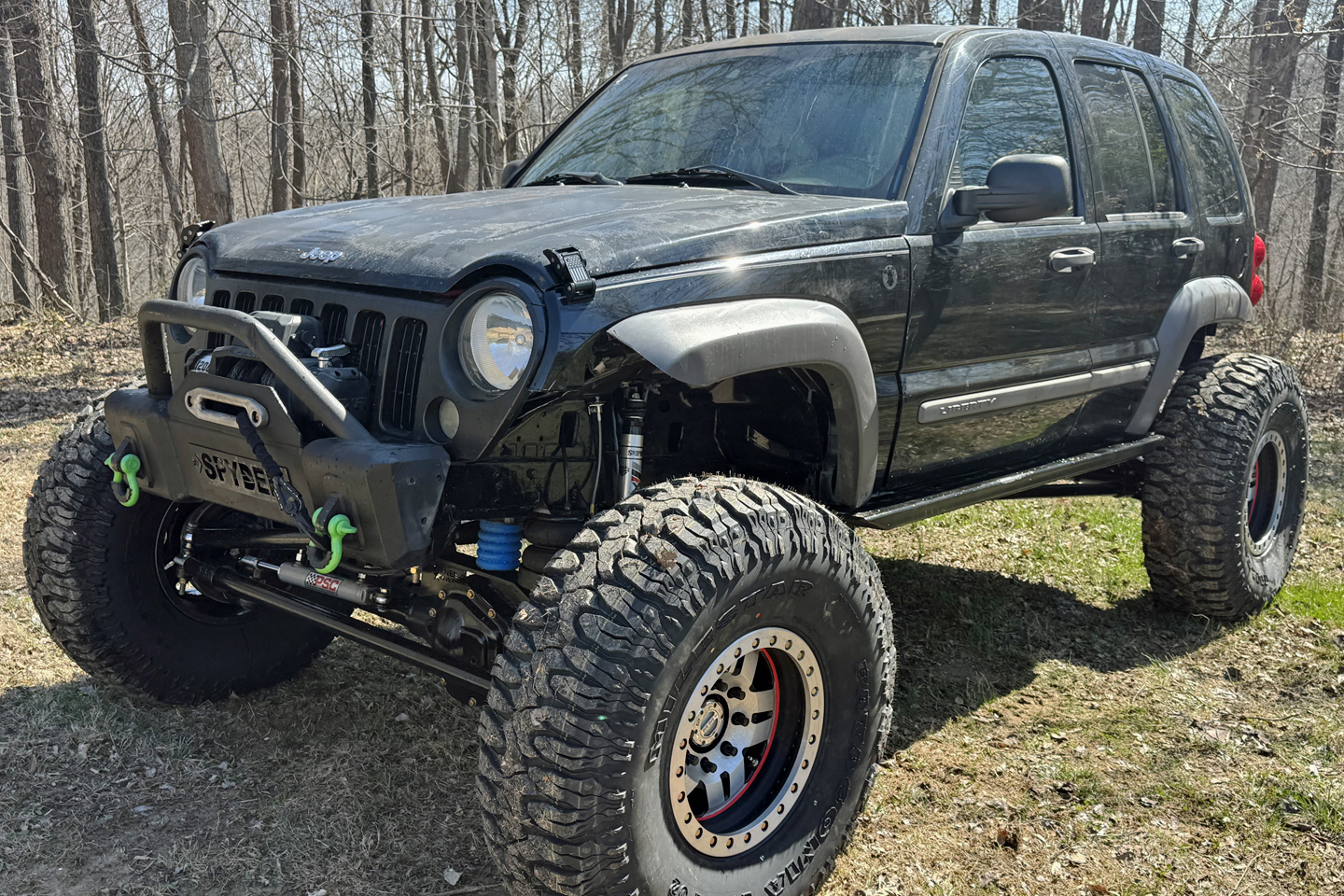

The 2005 jeep liberty off road build highlighted here started exactly like that: a $400 Facebook Marketplace find that most people would have walked past. The logic behind choosing such a cheap donor is simple—the 30-40-30 budget rule. By spending next to nothing on the vehicle itself, you free up thousands of dollars for high-end components like Barnes 4WD knuckles and custom frame reinforcement.

Under the hood, the stock 3.7-liter V6 is often underestimated. While it is not a high-horsepower racing engine, it is a resilient powertrain that provides enough torque for technical crawling when paired with the right gearing. In a rock crawler conversion, you aren't looking for high-speed desert racing; you want a steady, reliable heartbeat that can keep the wheels turning at 1 mph over jagged limestone.

Engineering Articulation: The Solid Axle Swap and 4-Link Setup

The biggest hurdle for any jeep liberty is the factory Independent Front Suspension (IFS). It is great for taking the kids to school, but it offers almost zero suspension articulation on the trail. To turn this into a true rock crawler, the first step is a total "IFS-ectomy."

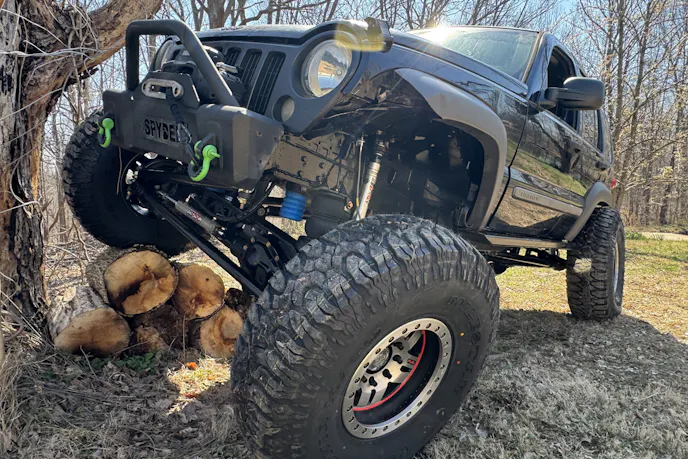

For this build, we opted for a solid axle swap jeep liberty conversion using a Dana 60 front axle. This provides the sheer strength needed to rotate massive tires without snapping half-shafts. To support this, we designed a custom jeep liberty 4 link suspension setup. Unlike a standard leaf spring or short-arm kit, a four-link system allows for incredible vertical travel while keeping the axle centered and controlled.

• Axle Choice: A Dana 60 front and a Ford 10.5 rear end provide a nearly indestructible foundation.
• Air Ride: Using Airmaxxx air bags instead of traditional coils allows the driver to adjust the ride height on the fly. This is crucial when navigating obstacles where an extra two inches of lift can prevent high-centering.

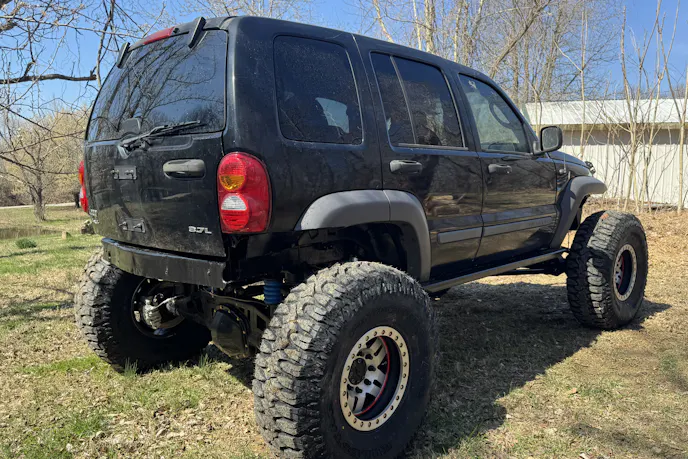

• Wheelbase Extension: The factory wheelbase is too short for steep climbs. We stretched the rear axle back several inches, providing a more stable footprint for the 40 inch tires.

Fitting 40 inch tires on jeep liberty is no small feat. It requires significant cutting of the wheel wells and custom core support modifications to accommodate high-clearance steering components. Without these changes, the tires would rub against the frame the moment you turned the steering wheel.

Drivetrain Surgery: The NP231 Doubler Transfer Case

When you move from a 29-inch stock tire to 40-inch Nitto Trail Grapplers, your gear ratios have to change drastically. If you keep the stock gearing, you’ll burn up the transmission in a single afternoon. To fix this, we regeared the axles to a 5.38:1 ratio. This high-ratio regearing brings the power back to the ground and takes the strain off the V6.

To achieve the ultimate crawl ratio, we installed a jeep liberty np231 doubler transfer case. This involves taking two NP231J units and mating them together, effectively giving the vehicle a "low-low" range. When both cases are engaged, the reduction is so extreme that you can let your foot off the brake and watch the car crawl over boulders at a snail's pace with absolute precision.

One of the more creative modifications in this build is the custom jeep liberty fuel tank relocation. The factory fuel tank hangs low in the rear, creating a massive snag point. By moving the tank into the rear cargo area, we were able to tuck the drivetrain up higher, creating a flat belly with a custom skid plate. This modification alone preserved 13.2 inches of ground clearance, ensuring the belly doesn't drag on the rocks.

Other critical drivetrain upgrades include:

• Hydraulic Assist Steering: Turning 40-inch tires on rocks requires more force than a standard pump can provide. A JK steering box with hydraulic assist makes steering effortless even when bound up in a crevice.
• Differential Lockers: Front and rear lockers ensure that all four wheels spin at the same speed, which is non-negotiable for limestone crawling.
• Custom Driveshafts: With the wheelbase extension and massive lift, standard shafts won't fit. We used heavy-duty shafts with high-angle U-joints to prevent binding during maximum articulation.

From 2012 to 2026: Reimagining the Liberty’s Future

The jeep liberty 2012 was the final year of production before the name was retired in favor of the Cherokee. For many purists, 2012 represented the end of the "rugged" compact Jeep. While the 2012 jeep liberty off road capability was respectable for a stock vehicle—especially those equipped with the Selec-Trac II system—it was never meant for the kind of extreme rock crawling we are discussing here.

Looking toward the future, there is a lot of buzz about a potential jeep liberty 2024 or even a jeep liberty 2025 revival. While Stellantis has not officially confirmed a return, enthusiasts are speculating that a jeep liberty 2026 could arrive as a hybrid or fully electric mid-size SUV. If a new model does appear, it will likely follow the path of the new Recon—a unibody construction with advanced traction control.

While modern tech is impressive, there is something uniquely satisfying about a junkyard axle conversion on a $400 frame. Modern solid axle swaps using Jeep Wrangler JL axles are valued at approximately $4,500, which shows just how much value you can add to a discarded platform with the right engineering.

FAQ

Why was the Jeep Liberty discontinued?

The Jeep Liberty was discontinued after the 2012 model year to make room for the return of the Jeep Cherokee. The shift was driven by a need for better fuel efficiency, more modern styling, and the move toward global platforms that could be sold in multiple international markets under a single nameplate.

Is there a 2026 Jeep Liberty?

There is no official confirmation of a 2026 Jeep Liberty from Jeep or Stellantis at this time. Most rumors regarding a 2025 or 2026 return are speculative, though Jeep is expanding its electrified lineup, and a mid-sized rugged SUV could potentially fit into their future product roadmap.

Are Jeep Liberty good reliable cars?

A Jeep Liberty can be a reliable vehicle if the cooling system and suspension bushings are well-maintained. The 3.7L V6 engine is known for being a workhorse, though it is not particularly fuel-efficient. Like many older Jeeps, they require regular attention to prevent common issues like power window failure or minor electrical gremlins.

What year to avoid Jeep Liberty?

Many enthusiasts suggest avoiding the 2002 and 2003 models, as they were the first years of the KJ generation and suffered from more frequent recalls and mechanical teething issues. The early 3.7L engines also had some reported issues with valve springs and oil sludge if maintenance was neglected.

Which year Jeep Liberty to avoid?

In addition to the early 2002-2003 models, the 2006 and 2007 years sometimes faced issues with the integrated power module (TIPM) and window regulators. If you are looking for the most refined version of the platform, the 2010 through 2012 models are generally considered the most sorted, though they lack some of the "rugged" charm of the earlier generations.
